Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware

Brand Name : Nanya

Model Number : TS-01

Certification : CE

Place of Origin : Guangdong, China (Mainland)

MOQ : 1set

Price : negotiation

Payment Terms : T/T or Western Union or L/C or Cash

Supply Ability : 50 sets per month

Delivery Time : 45~75 days

Packaging Details : Export Standard Packing

Product Name : Paper Plate Making Machine

Automation : Semi Automatic

Process Type : Pulp Molding Machine

Application : Dinnerware , Tableware

Raw Material : Virgin bagasse/bamboo/straw/wood pulp

Warranty : 12 Months

Drying type : Thermal Forming

Heating : Electricity/Thermal Oil

Contact Now

Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware


Paper Plate Making Machine Introduction



  • The forming machine complete the forming, drying and hot-press shaping procedures, but it needs labor transfer the wet products to the hot press mould for drying.
  • This machine can apply to manufacture high quality pulp molding products, such as dinnerware, tableware, dishware, artwork, disposable medical care products, high-grade electronics products and etc.
  • The products made by our machines are 100% biodegradable and environmental friendly.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

  • The raw material is the clean virgin paper, like the sugarcane bagasse pulp, bamboo pulp, straw pulp, wood pulp and etc.



Paper Plate Making MachineTechnical Parameters



 Model type  TS-01 Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware
 Capacity  800~1000pcs/h (Base on 8' round plate)
 Mould Platen Size  900*600mm
 Mould Quantity  1 set of Forming Mould & 2 sets of Hot Press Mould
 Workshop Required  >=200m2
 Electricity Consumption  55~60kw/h (82kw installed)
 Material Consumption  15~20kg/h
 Type of Material   Virgin bagasse/bamboo/straw/wood pulp
 Water Consumption  40~50kg/h
 Worker Required  4 persons
 Container Required  1 x 40’HQ
 Forming Type  Vacuum suction, thermoforming





Main Machine Image:



Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware





Working System:



Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.



Forming System: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.



Drying System: After forming, the tranfer moulds will move forward hot press moulds automatically. The procedures of forming, drying and hot-press shaping are completed in the forming machine.





Products:

  1. Dinnerware, dishware, tableware, lunch box, plate, cups, bowl…
  2. For jewelre box, wine box, tea box, makeup box;
  3. For high-grade electronics products, tools, hardware etc and etc
  4. Artware, like Mask, Christmas balls, Easter Eggs , boutiques…

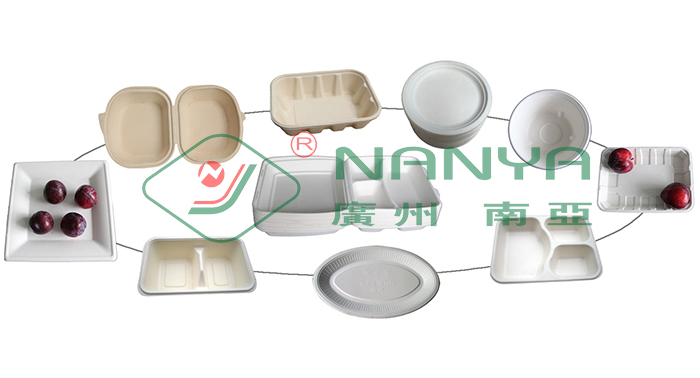

The below are products made by our machine, by changing moulds, the machine can make different products.



Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware





YOUTUBE Links:



 Semi Automatic Tableware Production Line  https://www.youtube.com/watch?v=ZVzzpF2ghRw&t=11s
 For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and subscribe us.
