Pulp Thermoforming Tableware Production Line / Bgasse Fiber Plate Molding Machine
Technical Parameters -TS02
| Model type | TS-02 |
| Capacity | 1600~2000pcs/h (Base on 8' round plate) |
| Main Machine Quantity | 2 sets of Main Machine |
| Mould Platen Size | 900*600mm |
| Mould Quantity | 1 set of Forming Mould & 2 sets of Hot Press Mould |
| Workshop Required | >=300m2 |
| Electricity Consumption | 100kw/h (150kw installed) |
| Material Consumption | 30~40kg/h |
| Type of Material | Virgin bagasse/bamboo/straw/wood pulp |
| Water Consumption | 80~100kg/h |
| Worker Required | 6 persons |
| Container Required | 1 x 40’HQ + 1 x 20'GP |
| Forming Type | Vacuum suction, thermoforming |
Tableware Production Line:
- This is a Semi Automatic Pulp Molding Tableware Production Line, which consist of a hydrapulper system, a semi automatic forming machine, and auxiliary equipments.
- The forming machine complete the forming, drying and hot-press shaping procedures, but it needs labor transfer the wet products to the hot press mould for drying.
- This machine can apply to manufacture high quality pulp molding products, such as dinnerware, tableware, dishware, artwork, disposable medical care products, high-grade electronics products and etc.
- The products made by our machines are 100% biodegradable and environmental friendly.
-
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
-
The raw material is the clean virgin paper, like the sugarcane bagasse pulp, bamboo pulp, straw pulp, wood pulp and etc.
Why Choose NANYA:
Rich Experience: Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;
Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 80 countries and regions;
Strong Teams: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.
Quality Machinery: We make and control strictly the whole process, adopt SIEMENS,FESTO & SMC brands, test all the machines and moulds and make sure everything is okay before delivery.
Good Service: We will reply your enquiry within 24 hours. Video conference is available. We will offer all the detailed manuals and drawings before installation; engineer available to service machinery overseas.
Main Machine Picture:
Working Procedures:
Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
Forming System: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.
Drying System: After forming, the tranfer moulds will move forward hot press moulds automatically. The procedures of forming, drying and hot-press shaping are completed in the forming machine.
Products:
- Tableware, dinnerware, tableware, lunch box, plate, cups, bowl…
- For jewelre box, wine box, tea box, makeup box;
- For high-grade electronics products, tools, hardware etc and etc
- Artware, like Mask, Christmas balls, Easter Eggs , boutiques…

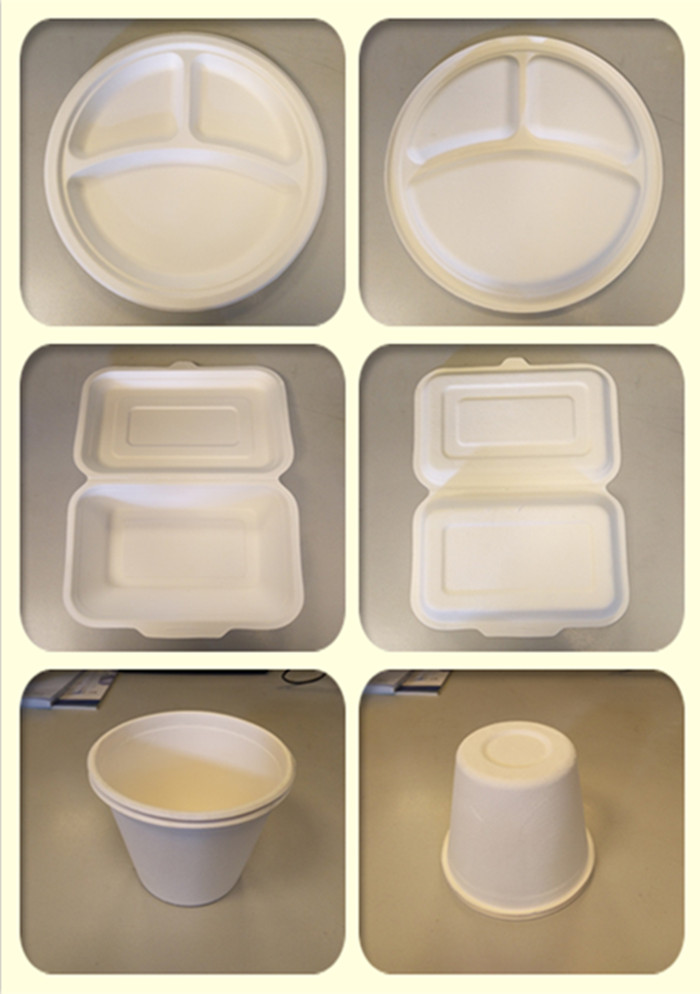

The below are products made by our machine, by changing moulds, the machine can make different products.
YOUTUBE Links:
Business Terms:
| Payment Terms | 30% down payment before production; 70% balance payment before delivery. |
| Delivery Terms | FOB Guangzhou, China. (CNF and CIF are also available.) |
| Delivery Time | 45~75 days |
| Package | Export Standard Packing |
| Warranty | 12 months |
| Installation | Overseas engineering service is available |
| Quotation Validity | 90 days after the offering date |
| Aftersales Service | We will send some spare parts for hot press use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation. |
