Food Box Container 120kw 1800pcs/H Pulp Molding Machine

Brand Name : NANYA

Model Number : TA01~TA10B

Certification : CE

Place of Origin : Guangdong, China(mainland)

MOQ : Negotiable

Price : Negotiation

Payment Terms : T/T, L/C, Cash or Western Union

Supply Ability : 1000 sets/year

Delivery Time : 60-120 Days

Packaging Details : Export Standard Packing

Product Name : Pulp Molding Machinery

Platen Size : 1300*1100mm

Capacity : 30~300 Kg / H

Drying Way : Drying in Mold

Applications : Tableware; Food Box; Container

Automation : Fully Automated

Raw Material : Bagasse Pulp; Bamboo Pulp; Wood Pulp

Heating Fuel : Electricity; Conduction oil; Steam

Control by : PLC + Touch Screen + Simens

Warranty : 12 Months

Max. Pressure : 40 Ton, Hydropneumatic

Voltage : Match local voltage

Contact Now

Full Automated Dry in Mold Food Box / Container Pulp Molding Machinery


Main Technical Data:

Model Type

TA-01B

TA-02B

TA-05B

TA-10B

Forming Machine 1 set  2 sets 5 sets 10 sets

Capacity

1800pcs/h

3500pcs/h

9000pcs/h

18000pcs/h

Workshop Required

200m2

230m2

600m2

1200 m2

Electricity Consumption

120kw

390kw

550kw

1100kw

Electricity Installed

200kw

250kw

880kw

1700kw

Material Consumption

25~30kg/h

50~60kg/h

120~150kg/h

250~300kg/h

Water  Consumption

80~100kg/h

150~200kg/h

500~600kg/h

1000~1200kg/h

Worker Requirement

3 persons

4 persons

6 persons

10 persons

Container Required for Shipment

1 x 40’HQ

2 x 40’HQ

4 x 40’HQ

8 x 40’HQ

Forming Type

Vacuum suction

Vacuum suction

Vacuum suction

Vacuum suction

Drying Method

Thermoforming

Thermoforming

Thermoforming

Thermoforming

Notes:

  1. The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products.
  2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





Introduction:



1. This is the fully automatic bagasse fiber tableware production line. Product forming, heating and hot-press and stacking in one forming machine.

2. This production line includes pulping system, forming and hot press system, vacuum system, air compressor system, trimming system, disinfection system.

3. Raw material: virgin pulp, like sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp, reed pulp and etc.

4. By changing moulds, the same forming machine can make different shape of products, such as paper plates, paper bowls, lunch boxes, cups and etc.

5. Can add robots, can edge trimming and stacking automatically.





Advantages of Bagasse Tableware Production Line:



1. Fully Automatic Tableware Production Line, high efficiency, less labor required.

2. Mainly used for high quality products , such as tableware, dishware and some high-grade pulp molding products.

3. The products are 100% disposable and environmental friendly.

4. Water resistant and oil resistant and food grade.

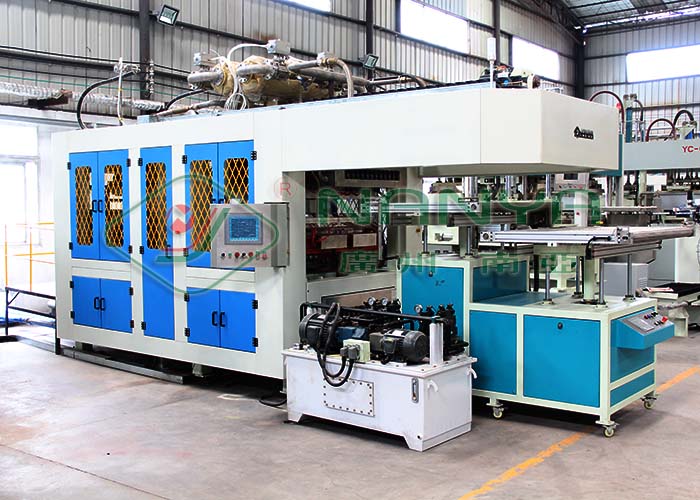

Forming Machine Photo:

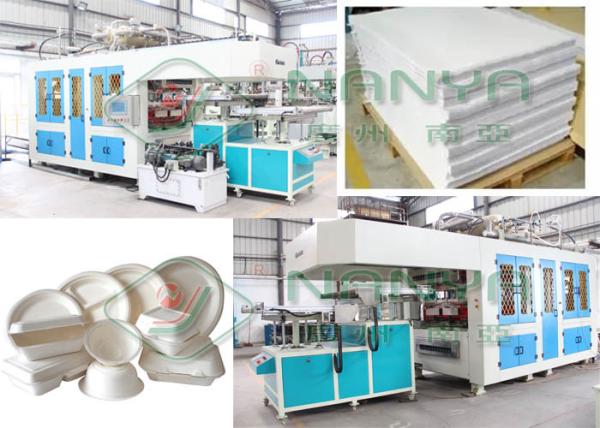

Food Box Container 120kw 1800pcs/H Pulp Molding Machine




Applications:



All kinds of tableware items plates, bowls, lunch boxes, food trays, cups and etc.
High quality packages for  cell phone, make up products, laptop, jewelry and etc.
Artwork 3D ceiling panel, masks, Easter egg , medical care items and etc.
Food Box Container 120kw 1800pcs/H Pulp Molding Machine





Youtube Video Links:



The below are the YOUTUBE Links showing how these fully automatic tableware production line work:

(1) https://www.youtube.com/watch?v=7YLnwE5lqJw

(2) https://www.youtube.com/watch?v=PrmRiMvirr8

(3) with robot video: https://youtu.be/X6yGLDTzT3Q

For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





Why choose NANYA Company:



1. Rich Experience: With 30 years of experience, we will make quotation and analysis based on customer’s investment and capacity.

2. Advanced Technology: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;

3. Good Service: Life-long service, sustainable supply and upgrade of parts and components, One-year warranty( three-year warranty for mechanical parts and main machine)

4. Wide Market: NANYA has more than 60% of the domestic demands, already exported to over 80 countries and regions

5. Good Team: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.





Installation & After Sales Service:

1  We will send 1 or 2 engineers to customer's plant for installation guidance and debug;
2  After commissioning, our engineers will offer the training, including two parts: explanation and practice.
3  Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
4  After engineers back to China, video conference or remote control guidance are available to solve questions.





Q & A



Q: What capacity can I choose:

A: We will match the forming machine quantity to meet your capacity demand.



Q: Can I customize mould?

A: Yes, we have our mould centre. We can make moulds according to customer's sample or drawing.



Q: What other fuel can I choose for heating products?

A: You can use electricity or thermo-oil or steam. But you need to prepare a boiler if you choose thermo-oil heating or steam.



Q: Can you offer the detailed layout on how to build up my workshop?

A: Yes, we will design and offer detailed layout and construction drawings to you.
